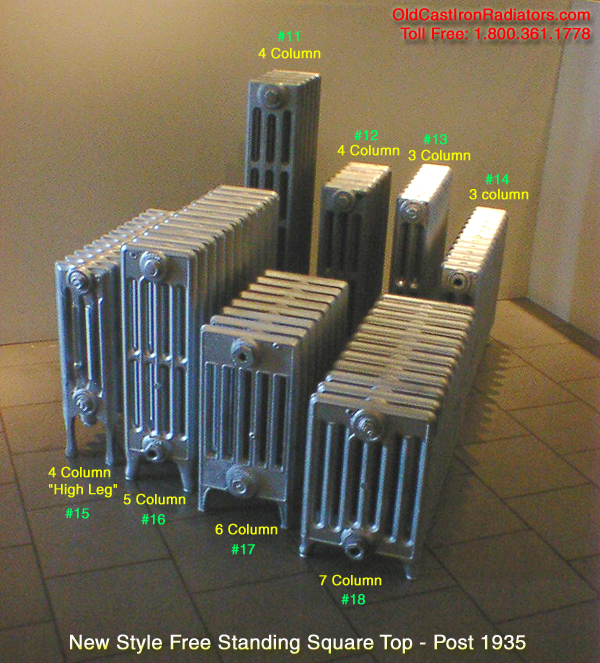

New Style Free Standing Square Top (Flat Top) - Post 1935

CAPACITY OF NEW STYLE CAST IRON RADIATOR
IN SQUARE FEET OF RADIATION PER SECTION
(SQUARE TOP - FREE STANDING - LEG TYPE)
HEIGHT
3 COLUMN
4 COLUMN
5 COLUMN
6 COLUMN
7 COLUMN
17"
N/A
N/A
N/A
N/A
3 1/3 SQ. FT.
20"
1 3/4 SQ. FT.
2 1/2 SQ. FT.
3 SQ. FT.
3 1/3 SQ. FT.
4 SQ. FT.
26"
2 1/2 SQ. FT.
3 SQ. FT
3 2/3 SQ. FT.
4 SQ. FT.
5 SQ. FT.
32"
3 1/4 SQ. FT.
3 2/3 SQ. FT.
4 1/2 SQ. FT.
5 SQ. FT.
N/A
38"
3 1/2 SQ. FT.
4 1/4 SQ. FT.
5 SQ. FT.
6 SQ. FT.
N/A
DEPTH
APPROX
4 3/4"
6 3/4"
8"
11"
12 1/2"
WIDTH
APPROX
2 1/2"
2 1/2"
2 1/2"
2 1/2"
2 1/2"
